2" Npt Bag Filter Housing, 304 Stainless Steel Bag Filter ， 150PSL High Pressure Filtration System, 30t/H Flow Rate, 4.95 ft² Large Filtration Area, for Industrial Water/Oil/Chemical Filtration

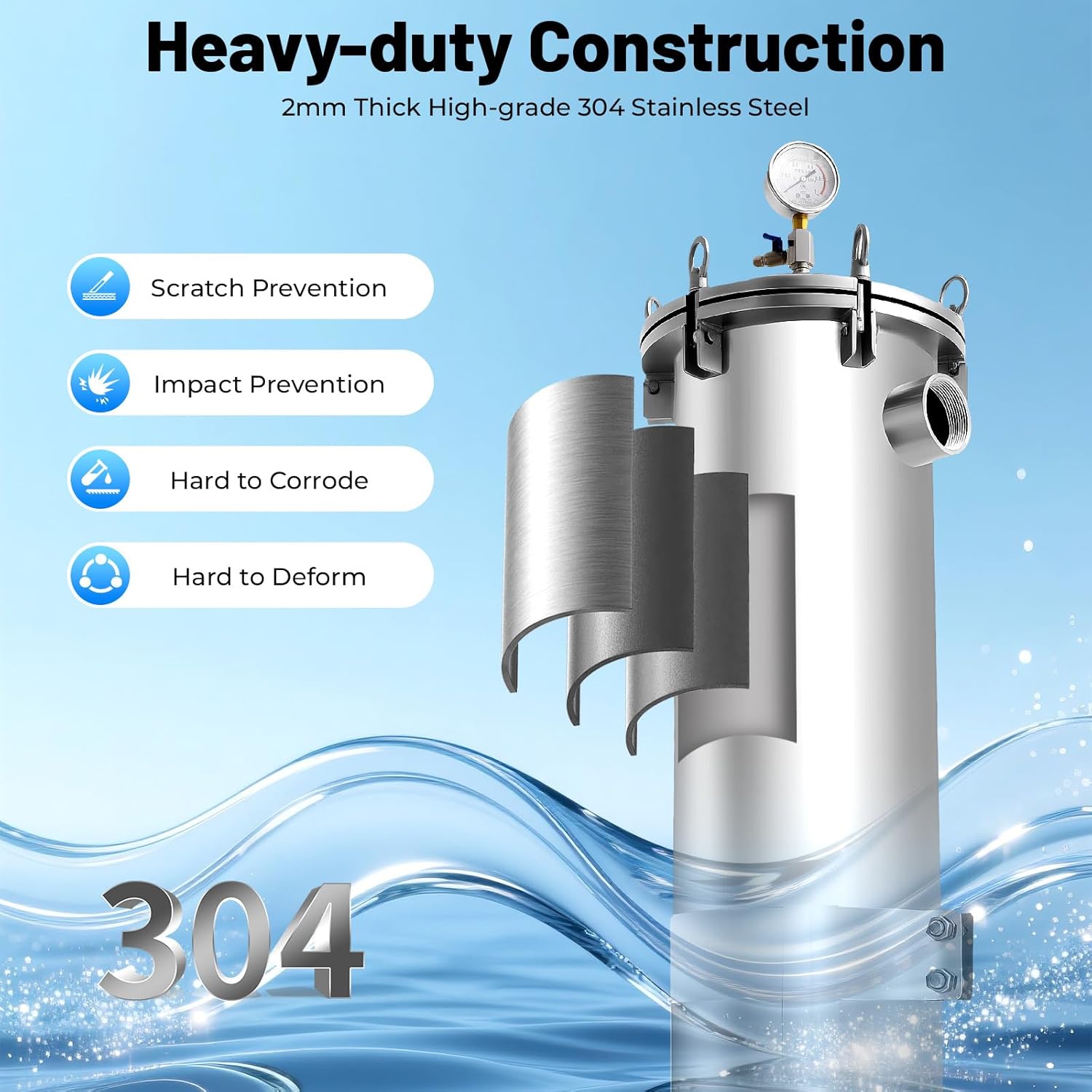

This 304 stainless steel bag filter is crafted from high-grade materials with a sturdy and durable structure . It has a compact and reasonable design, easy to install and clean, can efficiently filter a variety of impurities, and is suitable for a variety of liquid filtration scenarios, making it an ideal choice for improving production efficiency and guaranteeing product quality.Details Stabilizing Feet: The 3 adjustable feet are sturdy and durable, ensuring stability and safety in use.Pre-drilled Holes: They allow the product to be secured to the ground to further enhance stability.Eyenut: It allows for easy and fast fastening of the lid. Exhaust Valve: The pressure relief ball valve releases and exhausts pressure with one click, preventing excessive pressure inside the filter and extending the service life of the machine. ApplicationThis product is suitable for water treatment, ink, oil, beverage, and many other fields.SpecificationMount Type: FloorstandingAssembly Required: YesStyle: ModernColor: SilverMaterial: 304 Stainless SteelProcess: Mirror PolishingThickness: 2mm/0.08inFilter Bag Size: 180*810mm/7.1*31.9inHeight Range: 1145-1345mm/45.1-52.9inSupport Feet Length: 570mm/22.4inCenter Straight Barrel Length: 860mm/33.86inDistance from the Center of the Inlet to the Opening Side: 90mm/3.54inProduct Diameter: 219mm/8.62inFiltration Area: 0.46m²/4.95ft²Reference Flow Rate: 30-40t/hInlet/ Outlet Female Thread Size: NPT 2″Maximum Pressure: 1.0MPaPressure GaugeThread Diameter: M14x1.5Thread Height: 15mm/0.59inTotal Height: 90±2mm/3.54±0.08inDial Diameter: 68±1mm/2.68±0.04inDial Thickness: 28±2mm/1.1±0.08inAccuracy: 2.5 LevelAmbient Temperature: -20~80℃/-4~176℉Package Size: 123*30*30cm/48.43*11.81*11.81inGross Weight: 21.5kg/47.4lbsWeight: 20.43kg/45.04lbsPackage Included1* Stainless Steel Bag FilterOther Mounting AccessoriesNotes 1. Please check the style and size before purchasing.2. Please note that the filter must be cleaned with solvent (not included) before cleaning.3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.

• Efficient Filtration: The 7.1*31.9 inch filter bag has a high filtration area of 4.95 square feet. The filtrate flows into the filter bag from the side inlet of the filter housing, allowing the liquid to flow from high to low so that the filter bag is not affected by turbulence, which improves the filtration efficiency and service life.
• Excellent Performance: The filter unit mainly consists of the filter barrel body, the filter drum cover, the quick-opening mechanism, and the stainless steel filter bag reinforcing mesh basket. The filter bag installed in the reinforced mesh basket can effectively intercept the impurity particles, and the qualified filtrate can be obtained after the liquid penetrates the filter bag of the required fineness level, thereby achieving the effects of liquid filtration, purification, separation, and recovery.
• Considerate Design: The low probability of side leakage of the filter bag ensures filtration precision and the rapid replacement of the filter bag reduces the operation cost. The filter bag is supported by a metal mesh basket to help extend its service life.

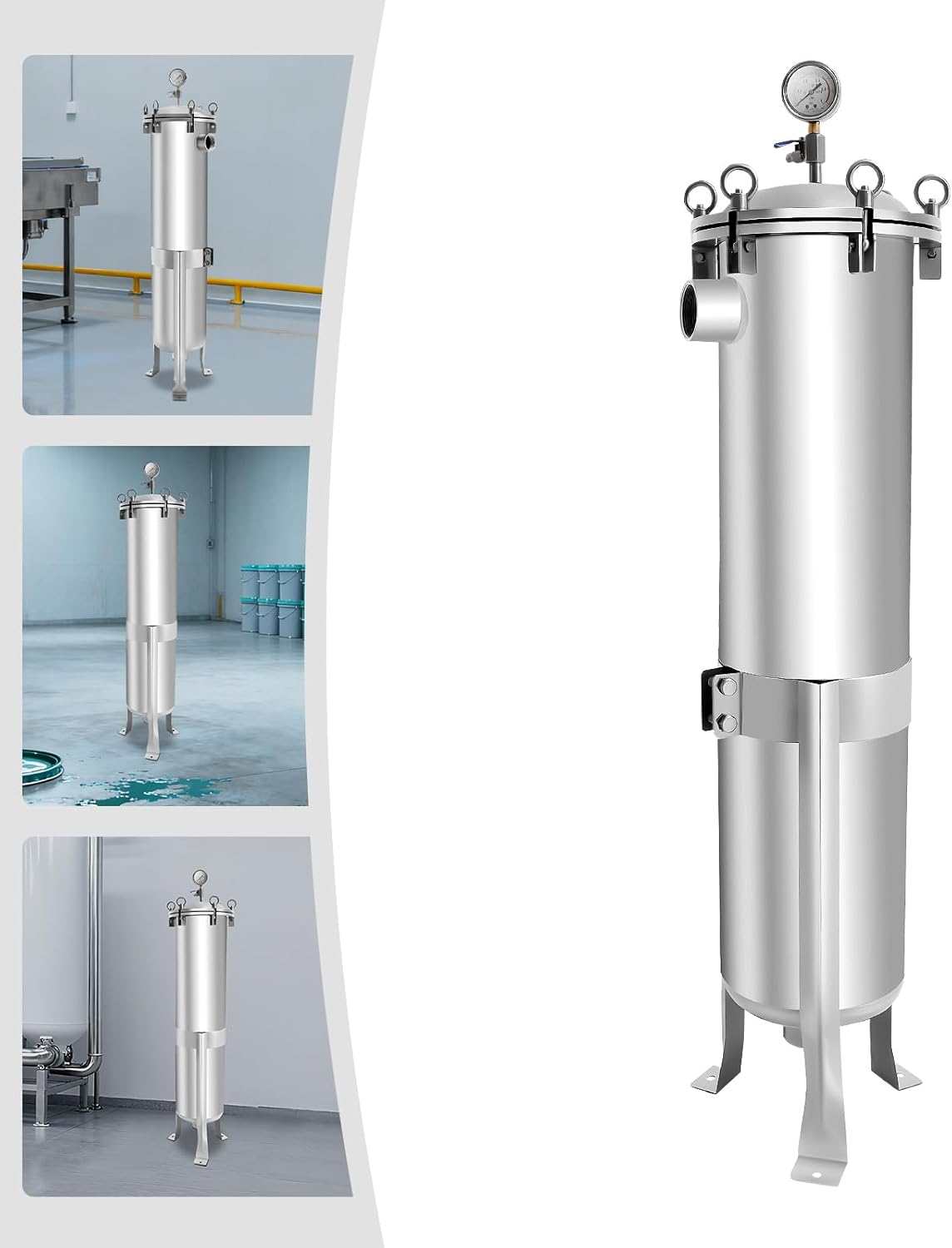

• Adjustable Height: You can adjust the overall height of the product(45.1-52.9 inches) by adjusting the support feet to determine the height of the machine from the ground according to the height of the inlet and outlet.
• Real-time Monitoring: This product is equipped with an excellent shock-resistant pressure gauge with 2.5-level accuracy and 1.0MPa measurement range, which is convenient for real-time and accurate monitoring of internal pressure and timely release of excess pressure.
• Easy to Assemble: Thanks to its simple structure and complete assembly parts, you just need to install the parts and tighten the screws to start using.
