220V Heavy-Duty Woodworking Jointer Planer Benchtop 8-Inch Woodworking Jointer with 4-Blade Cutter Shaft & 72" Cast Iron Table 0.125in Planing Depth Wood Planer for Workshop & Furniture Make

Item Included(022828) 1 set 220V 2.2KW Heavy-Duty Woodworking Jointer Planer for 1-8 Inch Planing Width, 0.125in Planing Depth Electrical Parameters Motor Type: Induction Motor Rated Power: 2200W Rated Voltage: 220V Rated Frequency: 50Hz Switch: NHD Safety Electromagnetic Switch Planing Capacity Max Planing Width: 8.0" (203mm) Min Planing Width: 1" (25.4mm) Max Planing Depth: 0.125" (3.175mm) Min Stock Thickness: 0.5" (12.7mm) Min Stock Length: 12.0" (305mm) Min Stock Width: 1" (25.4mm) Mortising Dimensions: 0.5*8" (12.7*203mm) Cutter Shaft Parameters Blade Cutting: Diameter φ2.95" (φ75mm) Number of Blades: 4 pieces Blade Specification: 8.0*0.78*0.11" (205*20*3mm) Cutter Shaft Speed: 5000RPM Worktable Parameters Total Table Length: 72.2" (1835mm) Infeed Table Length: 35.3" (897mm) Outfeed Table Length: 35.3" (897mm) Table Height (from floor):‌ 32.2" (820mm) Stock Guide Parameters Fence Dimensions: 5*35" (127*890mm) Positioning Angle: 45°/ 90°/ 135° Dust Port: Diameter φ3.9" (φ100mm) V-Belt: a1219 Push Handle Quantity: 2 Features 1: High-Power Motor: 2200W all-copper wound motor for efficient, stable, and heat-resistant performance. 2: Precision Worktable: smooth surface to minimize friction and wear on workpieces. 3: Sturdy Fence: Made of heavy cast iron for robust support, precise positioning. 4: Smooth Lifting: Utilizes a dovetail guideway for stable and precise vertical adjustment of the table. 5: Angle Adjustment: The fence adjusts to various angles for bevel planing, meeting different processing needs. 6: Balanced Cutter Head: An arc-shaped, dynamically balanced cutter head rotates smoothly with low vibration for a superior finish.

• High-Power Induction Motor & Safety Switch: This woodworking benchtop jointer and planer is equipped with a robust 2200W 220V induction motor for continuous heavy-duty planing. Features an NHD safety electromagnetic switch with real-time thermal overload protection that automatically cuts off power to prevent motor burnout and ensure safe operation.

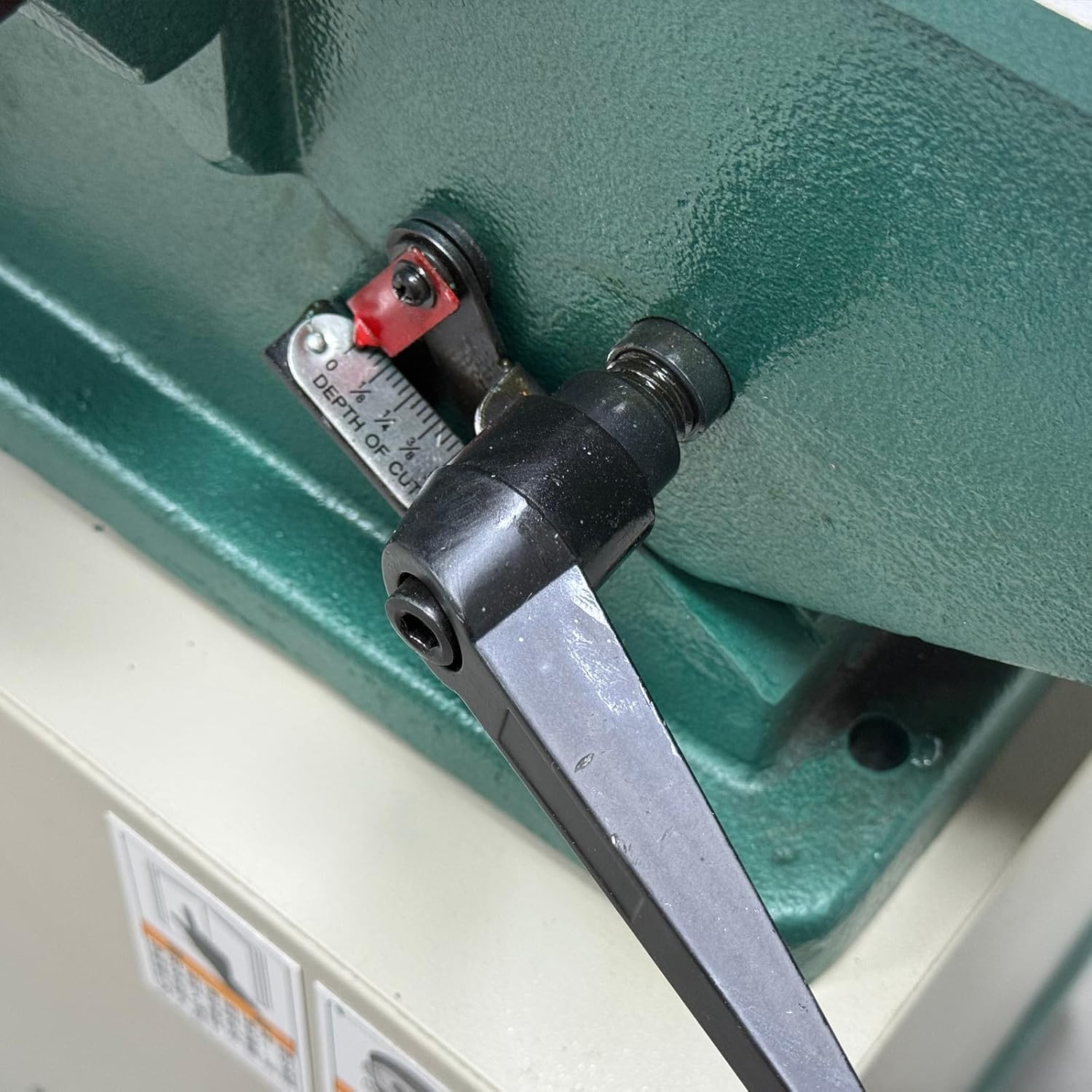

• Precision Planing Capacity & Dovetail Lift System: Our benchtop woodworking planer can handle boards up to 1-8" (25.4-203mm) wide and 0.125" (3.175mm) deep with high accuracy. The dovetail lifting mechanism ensures stable, vibration-resistant table adjustment, while a clear etched scale allows quick and precise depth setting.
• High-Speed Cutter Head with Full Safety Guard: The electric wood planer runs at 5000 RPM with 4 replaceable blades for smooth, efficient cuts. A fully enclosed safety guard physically separates hands from the cutter head, greatly reducing the risk of injury during operation.
• Quick-Set Fence & Spacious Worktables: Fence slides and locks instantly at 45°, 90°, or 135° for accurate angled planing. Two 35.3" long tables (total 72.2") provide ample support, and the infeed table is easily adjusted via a user-friendly front handle.
• Integrated Dust Port & Mobile Swivel Casters: This woodworking box-type surface planer design with a standard Dia 3.9" dust port to connect to an external vacuum, keeping the workspace clean. Four lockable swivel casters allow easy movement and secure placement anywhere in the workshop.
• Sturdy Box Design & Reliable Performance: Built with a rigid box-type structure for vibration-free operation, ideal for workshops, furniture making and construction sites, this industrial box planer for woodworking can reliably square lumber, flattens surfaces, and prepares stock for fine woodworking.
