Anti Pinch Infrared Presence Curtain Sensor for Automatic Sliding Door, Safety Light Curtain Door Sensor Through, LED Status Indication, Long-Range Detection

1. Working medium: 850nm infrared 2. Eye safety level: Class 1 3. Indicator light: 1 dual-color LED: standby blue/trigger red/sleep blue flashing 4. Response time: 5-10ms (not required for background detection) 5. Detection mode: distance-based presence detection 6. Detection distance: 0-14m 7. Minimum working range setting: automatic setting 0.4m; manual setting 0.3m 8. Projection area: 60mm*60mm (2.5m installation height) 9. Adjustable angle: 0°-20° 10. Output signal: relay (dry contact) 11. Signal hold time: 0.5s 12. Power supply voltage: 12-24V AC/DC -5%/10% 13. Power frequency: 50-60HZ 14. Power: ≤1.6W (12V-24V) 15. Operating temperature: -35°C to +65°C (powered); relative humidity 15% to 90%, non-condensing Package includes: Infrared Presence Curtain Senso*1

• 【Long-Range Detection】Offering 0-14m adjustable sensing distance. It delivers precise presence detection for automatic doors, ensuring reliable operation even in high-traffic commercial environments.

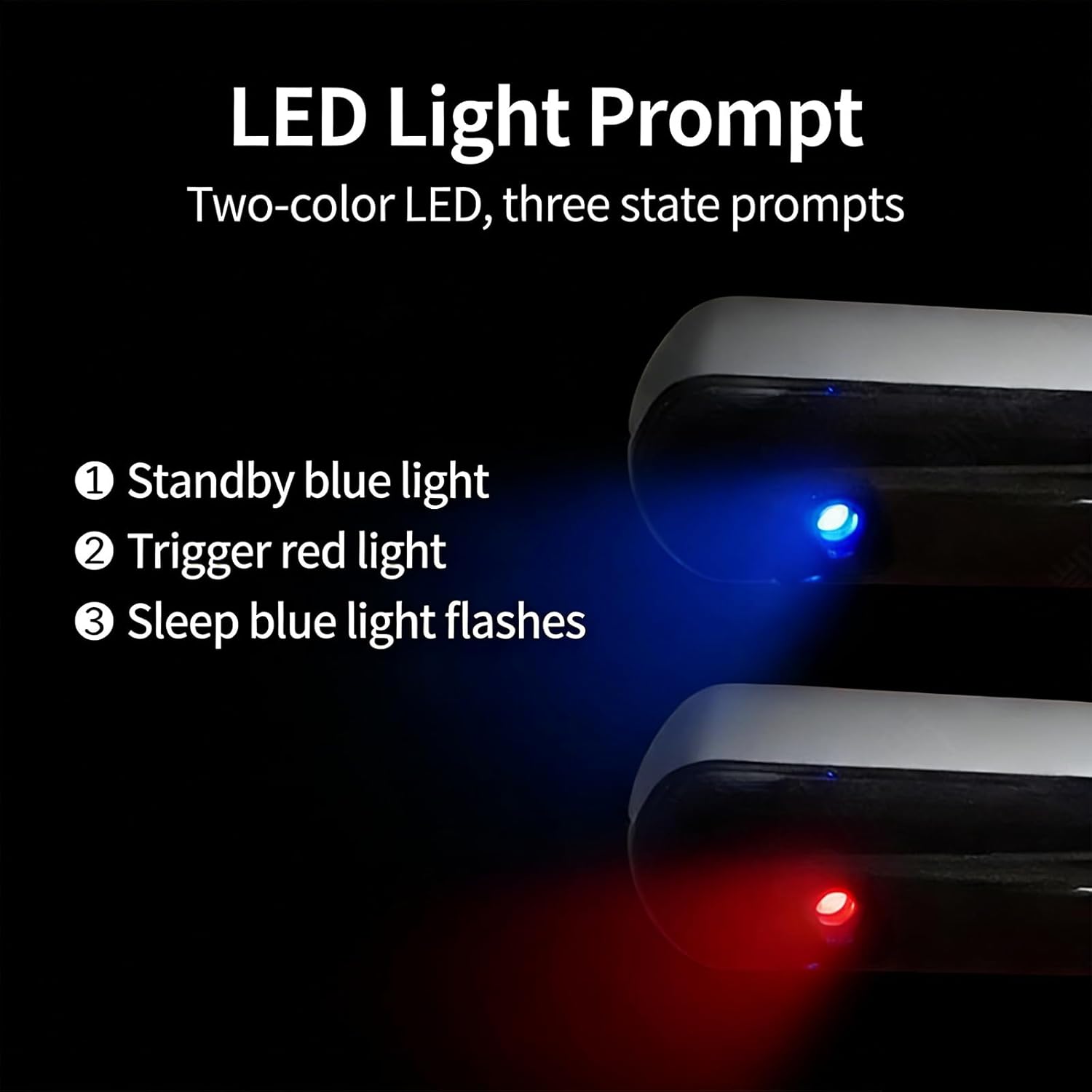

• 【Intuitive LED Status Indication】Equipped with dual-color LED lights: blue for standby, red for trigger activation, and flashing blue for sleep mode. Clear visual feedback simplifies troubleshooting and operational monitoring for users.
• 【Flexible Safety Adjustment】Features 0°-20° adjustable anti-pinch light angle, plus automatic/manual detection modes via switch. The minimum working range can be set to 0.3m (manual) or 0.4m (automatic), balancing safety and functionality.
• 【Reliable & Durable Performance】5-10ms fast response time, and a wide operating temperature range (-35°C to +65°C). With ≤1.6W low power consumption and dry contact relay output, it ensures stable, long-term performance in various conditions.
• 【Versatile Door Compatibility】Designed for both swing doors and revolving doors, with easy installation on the top of door leaves. Its compact 780mm length fits most standard door frames, making it a universal safety solution.
